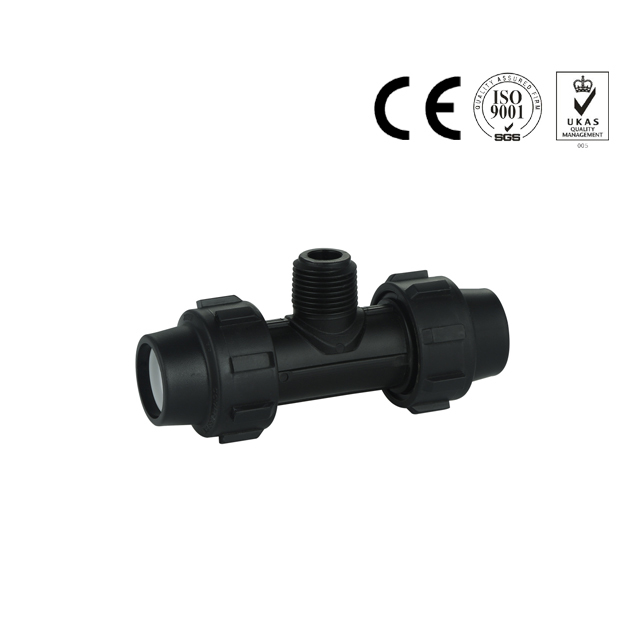

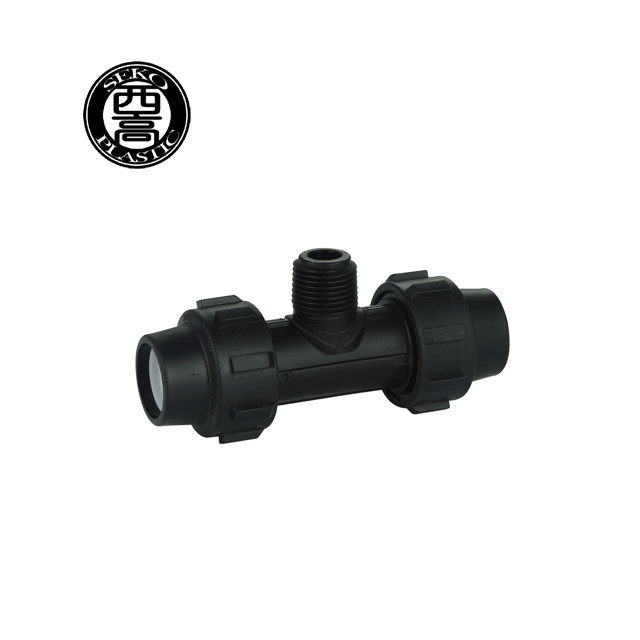

Black PP male tee PN16 plumbing compression fittings

Hot selling pp hdpe 1/2"-4" black PN16 plastic male tee 20mm-110mm plumbing compression pipe fittings for irrigation and water distribution

Description

Quick Details

Material: PP,HDPE Technics: Injection Place of Origin: Zhejiang, China (Mainland)
Model Number: skpp404 Brand Name: seko Connection: tee
Shape: Male Head Code: round Color: blue and black
Type: Tee Pressure  PN16

Supply Ability

Supply Ability: 3000 Carton/Cartons per Week

Product Description

Female Tee

Specifications:  20mm--110mm

Thread from 1/2"-4"

Pressure piping applications
Ease of installation
Water distribution,Irrigation

SKPP204 MALE TEE
spec   qty/ctn Package size g.w. n.w. PICTURE
pc m m m kgs kgs
20 x 1/2"  96 0.5 0.3 0.22 8.38 7.68

20 x 3/4"  96 0.5 0.3 0.22 8.38 7.68
25 x 1/2"  60 0.5 0.3 0.22 8.44 7.74
25 x 3/4"  60 0.5 0.3 0.22 8.44 7.74
25 x 1"  60 0.5 0.3 0.22 8.44 7.74
32 x 1/2"  40 0.5 0.3 0.24 8.30 7.60
32 x 3/4"  40 0.5 0.3 0.24 8.30 7.60
32x1" 40 0.5 0.3 0.24 8.30 7.60
32*1-1/4" 40 0.5 0.3 0.24 8.30 7.60
40x1" 26 0.5 0.3 0.265 10.13 9.43
40*1-1/4" 26 0.5 0.3 0.265 10.13 9.43
40*1-1/2" 26 0.5 0.3 0.265 10.13 9.43
50*1-1/4" 12 0.5 0.3 0.24 8.20 7.50
50*1-1/2" 12 0.5 0.3 0.24 8.20 7.50
50x2" 12 0.5 0.3 0.24 8.20 7.50
63*1-1/2" 8 0.5 0.32 0.24 8.66 7.96
63x2" 8 0.5 0.32 0.24 8.66 7.96
63*2-1/2" 8 0.5 0.3 0.24 8.66 7.96
75x2" 6 0.5 0.3 0.38 8.99 8.29
75*2-1/2" 6 0.5 0.3 0.38 8.99 8.29
75x3" 6 0.5 0.3 0.38 8.99 8.29
90x2-1/2" 6 0.6 0.3 0.43 12.91 12.21
90x3" 6 0.6 0.3 0.43 12.91 12.21
90x4" 6 0.6 0.3 0.43 12.91 12.21
110x3" 4 0.52 0.32 0.53 16.28 15.58
110x4" 4 0.52 0.32 0.53 16.28 15.58



SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
