Lower price agriculture pp hdpe 20mm--110mm black PN16 fast connecting equal coupling compression pipe fittings for irrigation and water distribution
Quick Details
| Material: | PP,HDPE | Technics: | Injection | Place of Origin: | Zhejiang, China (Mainland) |
| Model Number: | SKPP405 | Brand Name: | seko | Connection: | fast connecting |
| Shape: | Equal | Head Code: | round | Color: | blue and black |
| Type: | Coupling | Pressure | PN16 |
Supply Ability
| Supply Ability: | 5000 Carton/Cartons per Week |
Product Description

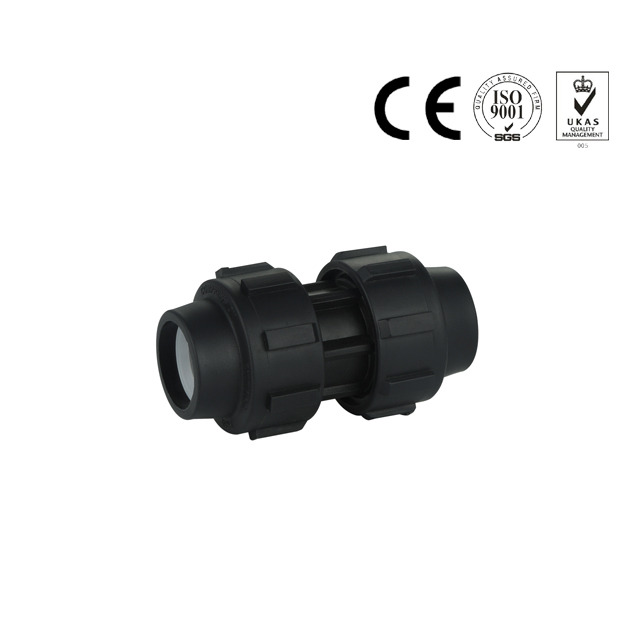

Straight Coupling
Specifications: 20mm--110mm
Pressure piping applications
Ease of installation
Water distribution,Irrigation
| SKPP205 COUPLING | ||||||||||
| spec | qty/ctn | Package size | g.w. | n.w. | PICTURE | |||||
| pc | m | m | m | kgs | kgs | |||||
| 20 | 168 | 0.5 | 0.3 | 0.265 | 11.62 | 10.92 |
|
|||
| 25 | 100 | 0.5 | 0.3 | 0.24 | 11.40 | 10.70 | ||||
| 32 | 68 | 0.5 | 0.3 | 0.265 | 12.12 | 11.42 | ||||
| 40 | 30 | 0.5 | 0.3 | 0.24 | 9.88 | 9.18 | ||||
| 50 | 22 | 0.5 | 0.3 | 0.28 | 12.12 | 11.42 | ||||
| 63 | 11 | 0.5 | 0.3 | 0.265 | 9.46 | 8.76 | ||||
| 75 | 8 | 0.5 | 0.3 | 0.24 | 9.44 | 8.74 | ||||
| 90 | 6 | 0.45 | 0.35 | 0.31 | 10.98 | 10.28 | ||||
| 110 | 6 | 0.56 | 0.41 | 0.35 | 19.44 | 18.74 | ||||
SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
