High quality blue and black plastic female tee compression pipe fittings made in pp hdpe for water distribution and irrigation
Quick Details
| Material: | PP,HDPE | Technics: | Injection | Place of Origin: | Zhejiang, China (Mainland) |
| Model Number: | skpp103 | Brand Name: | seko | Connection: | tee |
| Shape: | Female | Head Code: | round | Color: | blue and black |
| Type: | Tee | Pressure: | PN16 |
Supply Ability
| Supply Ability: | 3000 Carton/Cartons per Week |
Product Description

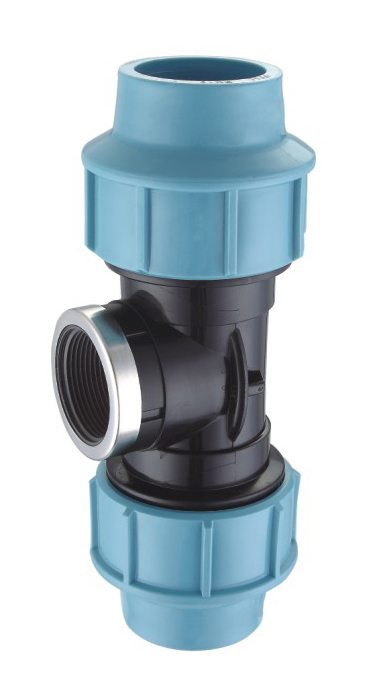

Female Tee
Specifications: 20mm--110mm
Thread from 1/2"-4"
Pressure piping applications
Ease of installation
Water distribution,Irrigation
| SKPP103 FEMALE TEE | ||||||||||
| spec | qty/ctn | Package size | g.w. | n.w. | PICTURE | |||||
| pc | m | m | m | kgs | kgs | |||||
| 20 x 1/2" | 96 | 0.5 | 0.3 | 0.22 | 8.19 | 7.49 |
|
|||
| 20 x 3/4" | 96 | 0.5 | 0.3 | 0.22 | 8.19 | 7.49 | ||||
| 25 x 1/2" | 60 | 0.5 | 0.3 | 0.22 | 8.38 | 7.68 | ||||
| 25 x 3/4" | 60 | 0.5 | 0.3 | 0.22 | 8.38 | 7.68 | ||||
| 25 x 1" | 60 | 0.5 | 0.3 | 0.22 | 8.38 | 7.68 | ||||
| 32 x 1/2" | 40 | 0.5 | 0.3 | 0.24 | 8.22 | 7.52 | ||||
| 32 x 3/4" | 40 | 0.5 | 0.3 | 0.24 | 8.22 | 7.52 | ||||
| 32 x 1" | 40 | 0.5 | 0.3 | 0.24 | 8.22 | 7.52 | ||||
| 32 x 1-1/4" | 40 | 0.5 | 0.3 | 0.24 | 8.22 | 7.52 | ||||
| 40 x 1" | 20 | 0.5 | 0.3 | 0.285 | 7.88 | 7.18 | ||||
| 40*1-1/4" | 20 | 0.5 | 0.3 | 0.265 | 7.88 | 7.18 | ||||
| 40*1-1/2" | 20 | 0.5 | 0.3 | 0.265 | 7.88 | 7.18 | ||||
| 50*1-1/4" | 20 | 0.5 | 0.3 | 0.26 | 12.64 | 11.94 | ||||
| 50*1-1/2" | 13 | 0.5 | 0.3 | 0.24 | 8.46 | 7.76 | ||||
| 50*2" | 20 | 0.5 | 0.3 | 0.28 | 12.64 | 11.94 | ||||
| 63*1-1/2" | 9 | 0.5 | 0.3 | 0.32 | 8.98 | 8.28 | ||||
| 63*2" | 9/8 | 0.5 | 0.3 | 0.32/0.26 | 8.98 | 8.28 | ||||
| 63*2-1/2" | 9 | 0.5 | 0.3 | 0.315 | 8.98 | 8.28 | ||||
| 75*2" | 6 | 0.5 | 0.3 | 0.38 | 9.31 | 8.61 | ||||
| 75*2-1/2" | 6 | 0.5 | 0.3 | 0.3 | 9.31 | 8.61 | ||||
| 75*3" | 6 | 0.5 | 0.3 | 0.38 | 9.31 | 8.61 | ||||
| 90*2-1/2" | 6 | 0.6 | 0.3 | 0.43 | 13.16 | 12.46 | ||||
| 90*3" | 6 | 0.48 | 0.38 | 0.34 | 13.16 | 12.46 | ||||
| 90*4" | 6 | 0.6 | 0.3 | 0.43 | 13.16 | 12.46 | ||||
| 110*3" | 4 | 0.52 | 0.32 | 0.53 | 15.62 | 14.92 | ||||
| 110*4" | 4 | 0.56 | 0.41 | 0.35 | 15.62 | 14.92 | ||||
SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
