Hdpe pp male threaded adaptor compression pipe fittings

High quality Hdpe pp blue and black fast connecting PN16 male adaptor compression pipe fittings for water supply and irrigation

Send Enquiry
PREV：Hdpe pp 90 degree equal elbow plastic compression pipe fittings
NEXT：Plastic equal tee pp compression pipe fittings for irrigation

Description

Quick Details

Material: PP,HDPE Technics: Injection Place of Origin: Zhejiang, China (Mainland)
Model Number: skpp108 Brand Name: seko Connection: fast connecting
Shape: Male Head Code: round Color: blue and black
Type: Coupling  Pressure: PN16

Supply Ability

Supply Ability: 50000 Carton/Cartons per Week

Product Description

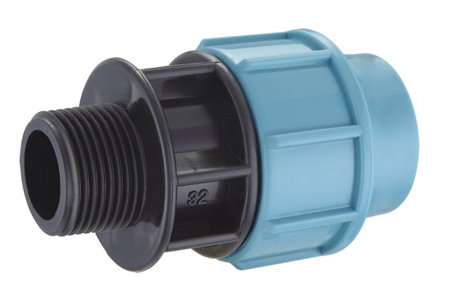

Male Adaptor

Specifications:  20mm--110mm

Thread from 1/2"-4"

Pressure piping applications
Ease of installation
Water distribution, Irrigation

SKPP108  MALE ADAPTOR
spec   qty/ctn Package size g.w. n.w. PICTURE
pc m m m kgs kgs
20 x 1/2"  260 0.5 0.3 0.24 10.84 10.14
　
20 x 3/4"  216 0.5 0.3 0.24 9.12 8.42
20x1" 216 0.5 0.3 0.24 9.12 8.42
25 x 1/2"  165 0.5 0.3 0.24 10.44 9.74
25 x 3/4"  150 0.5 0.3 0.24 9.55 8.85
25 x 1"  135 0.5 0.3 0.22 9.55 8.85
32 x1/2"  120 0.5 0.3 0.24 11.38 10.68
32 x 3/4"  105 0.5 0.3 0.24 10.05 9.35
32 x 1"  102/120 0.5 0.3 0.24/0.26 9.78 9.08
32*1-1/4" 102 0.5 0.3 0.24 10.29 9.59
40*1" 66 0.5 0.3 0.26 11.26 10.56
40*1-1/4" 62 0.5 0.3 0.24 10.62 9.92
40*1-1/2" 56 0.5 0.3 0.24 9.77 9.07
50*11/4" 30 0.5 0.3 0.24 9.04 8.34
50*11/2" 30 0.5 0.3 0.24 9.49 8.79
50*2" 30 0.5 0.3 0.24 9.49 8.79
63*11/2" 20 0.5 0.3 0.24 8.84 8.14
63*2" 20 0.5 0.3 0.24 8.84 8.14
63*2-1/2" 16 0.5 0.3 0.24 8.84 8.14
75*2" 16 0.5 0.3 0.34 10.81 10.11
75*2-1/2" 16 0.5 0.3 0.34 10.81 10.11
75*3" 16 0.47 0.3 0.34 10.81 10.11
90*2" 12 0.47 0.3 0.39 12.55 11.85
90*2-1/2 12 0.47 0.3 0.39 12.55 11.85
90*3 12 0.47 0.3 0.39 12.55 11.85
90*4 12 0.47 0.3 0.42 12.55 11.85
110*3" 6 0.45 0.35 0.35 11.53 10.83
110*4" 8 0.5 0.35 0.35 15.14 14.44



SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
