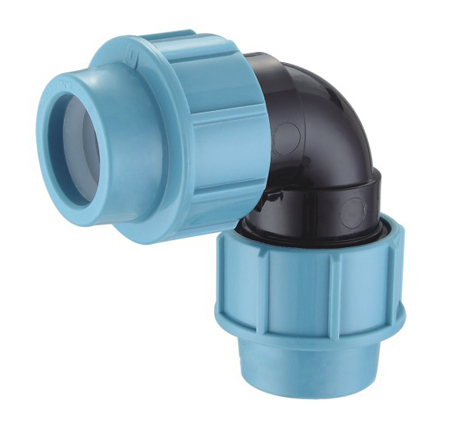

20mm--110mm italian type hdpe pp blue and black fast connecting PN16 90 degree equal elbow plastic compression pipe fittings for water supply and irrigation
Quick Details
| Material: | PP,HDPE | Technics: | Injection | Place of Origin: | Zhejiang, China (Mainland) |
| Model Number: | skpp109 | Brand Name: | seko | Connection: | fast connecting |
| Shape: | Equal | Head Code: | round | Color: | blue and black |
| Type: | Elbow | Pressure: | PN16 |
Supply Ability
| Supply Ability: | 50000 Carton/Cartons per Week |
Product Description
90Deg. Elbow
Specifications: 20mm*--110mm
Pressure piping applications
Ease of installation
Water distribution,Irrigation
| SKPP109 90 DEG. ELBOW | ||||||||||
| spec | qty/ctn | Package size | g.w. | n.w. | PICTURE | |||||
| pc | m | m | m | kgs | kgs | |||||
| 20 | 150 | 0.5 | 0.3 | 0.265 | 11.20 | 10.50 |
|
|||
| 25 | 88 | 0.5 | 0.3 | 0.265 | 10.64 | 9.94 | ||||
| 32 | 52 | 0.5 | 0.3 | 0.265 | 9.33 | 8.63 | ||||
| 40 | 26 | 0.5 | 0.3 | 0.24 | 8.76 | 8.06 | ||||
| 50 | 15 | 0.5 | 0.3 | 0.24 | 9.25 | 8.55 | ||||
| 63 | 11 | 0.5 | 0.32 | 0.3 | 10.42 | 9.72 | ||||
| 75 | 6 | 0.5 | 0.3 | 0.265 | 7.78 | 7.08 | ||||
| 90 | 4 | 0.5 | 0.3 | 0.265 | 8.60 | 7.90 | ||||
| 110 | 4 | 0.56 | 0.35 | 0.35 | 14.62 | 13.92 | ||||
SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
