High quality 20mm-110mm italian type blue and black Plastic equal tee PN16 pp compression pipe fittings for irrigation and water supply
Quick Details
| Material: | PP,HDPE | Technics: | Injection | Place of Origin: | Zhejiang, China (Mainland) |
| Model Number: | SKPP101 | Brand Name: | NETTFIT | Connection: | fast connecting |
| Shape: | Equal | Head Code: | round | Color: | blue and black |
| Type: | Tee | Pressure | PN16 |
Supply Ability
| Supply Ability: | 5000Carton/Cartons per Week |
Product Description

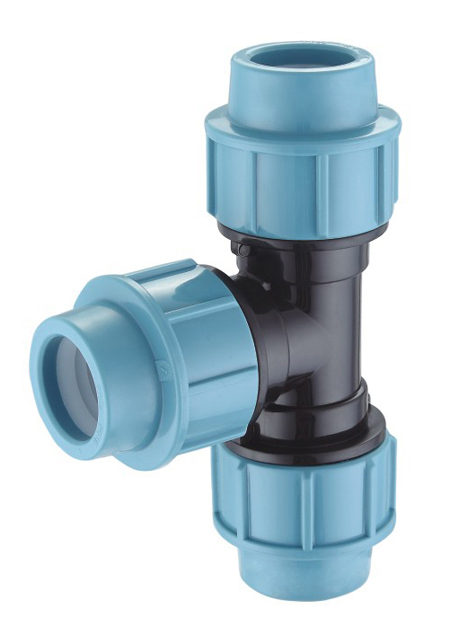

Equal Tee
Specifications: 20mm--110mm
Pressure piping applications
Ease of installation
Water distribution,Irrigation
| SKPP101 TEE | ||||||||||
| spec | qty/ctn | Package size | g.w. | n.w. | PICTURE | |||||
| pc | m | m | m | kgs | kgs | |||||
| 20 | 96 | 0.5 | 0.3 | 0.265 | 10.78 | 10.08 |
|
|||
| 25 | 54 | 0.5 | 0.3 | 0.265 | 9.93 | 9.23 | ||||
| 32 | 27 | 0.5 | 0.3 | 0.22 | 7.50 | 6.80 | ||||
| 50 | 9 | 0.5 | 0.3 | 0.24 | 7.70 | 7.00 | ||||
| 63 | 7 | 0.45 | 0.35 | 0.31 | 9.51 | 8.81 | ||||
| 75 | 6 | 0.49 | 0.36 | 0.38 | 11.32 | 10.62 | ||||
| 90 | 4 | 0.48 | 0.38 | 0.34 | 11.30 | 10.60 | ||||
| 110 | 3 | 0.58 | 0.44 | 0.4 | 16.21 | 15.51 | ||||
SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
