Agricultural 20mm-110mm PP HDPE male adaptor fittings

Factory Price black agricultural male adaptor 20mm-110mm pp hdpe PN16 fast connecting plastic compression pipe fittings for irrigation and water distribution

Send Enquiry
PREV：Fast connecting black 90 deg equal elbow PP HDPE fittings
NEXT：Good Price Black Female threaded adaptor 20mm-110mm fittings

Description

Quick Details

Material: PP,HDPE Technics: Injection Place of Origin: Zhejiang, China (Mainland)
Model Number: skpp408 Brand Name: seko Connection: fast connecting
Shape: Male Head Code: round Color: blue and black
Type: Coupling Pressure   PN16  Material plastic

Supply Ability

Supply Ability: 50000 Carton/Cartons per Week

Product Description

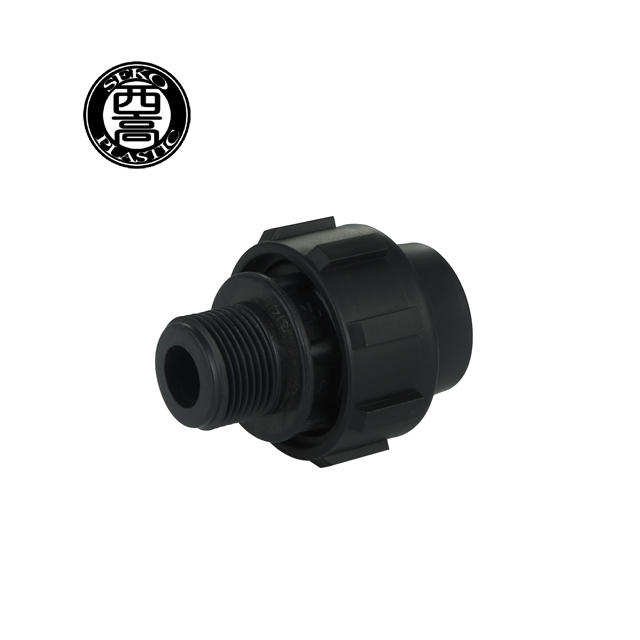

Male Adaptor

Specifications:  20mm--110mm

Thread from 1/2"-4"

Pressure piping applications
Ease of installation
Water distribution,Irrigation

SKPP208  MALE ADAPTOR
spec   qty/ctn Package size g.w. n.w. PICTURE
pc m m m kgs kgs
20 x 1/2"  260 0.5 0.3 0.24 10.84 10.14
　
20 x 3/4"  216 0.5 0.3 0.24 9.12 8.42
20x1" 216 0.5 0.3 0.24 9.12 8.42
25 x 1/2"  165 0.5 0.3 0.24 10.44 9.74
25 x 3/4"  150 0.5 0.3 0.24 9.55 8.85
25 x 1"  135 0.5 0.3 0.22 9.55 8.85
32 x1/2"  120 0.5 0.3 0.24 11.38 10.68
32 x 3/4"  105 0.5 0.3 0.24 10.05 9.35
32 x 1"  102/120 0.5 0.3 0.24/0.26 9.78 9.08
32*1-1/4" 102 0.5 0.3 0.24 10.29 9.59
40*1" 66 0.5 0.3 0.26 11.26 10.56
40*1-1/4" 62 0.5 0.3 0.24 10.62 9.92
40*1-1/2" 56 0.5 0.3 0.24 9.77 9.07
50*11/4" 30 0.5 0.3 0.24 9.04 8.34
50*11/2" 30 0.5 0.3 0.24 9.49 8.79
50*2" 30 0.5 0.3 0.24 9.49 8.79
63*11/2" 20 0.5 0.3 0.24 8.84 8.14
63*2" 20 0.5 0.3 0.24 8.84 8.14
63*2-1/2" 16 0.5 0.3 0.24 8.84 8.14
75*2" 16 0.5 0.3 0.34 10.81 10.11
75*2-1/2" 16 0.5 0.3 0.34 10.81 10.11
75*3" 16 0.47 0.3 0.34 10.81 10.11
90*2" 12 0.47 0.3 0.39 12.55 11.85
90*2-1/2 12 0.47 0.3 0.39 12.55 11.85
90*3 12 0.47 0.3 0.39 12.55 11.85
90*4 12 0.47 0.3 0.42 12.55 11.85
110*3" 6 0.45 0.35 0.35 11.53 10.83
110*4" 8 0.5 0.35 0.35 15.14 14.44



SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
