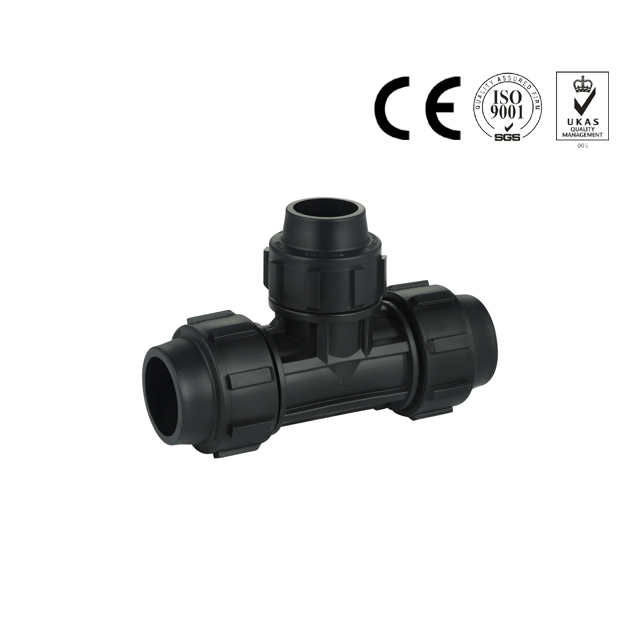

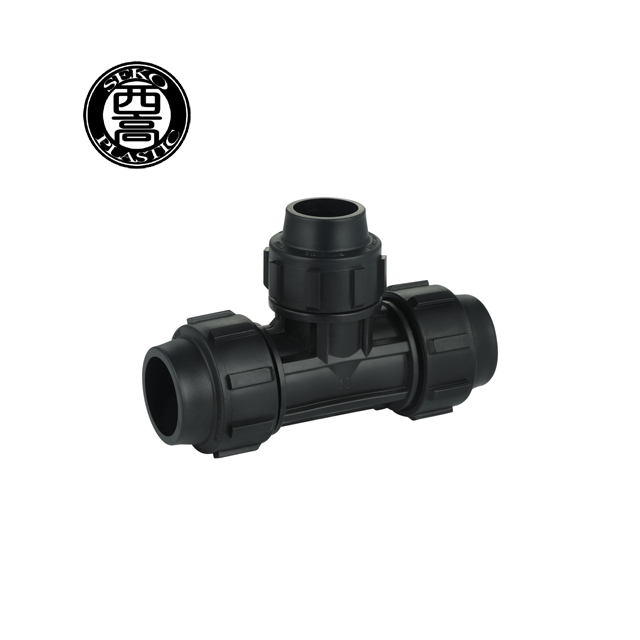

New arrival pp reducing tee 20mm-110mm compression fittings

New arrival pp hdpe 20mm-110mm black PN16 plastic reducing tee fast connecting compression fittings for water irrigation

Description

Quick Details

Material: PP,HDPE Technics: Injection Place of Origin: Zhejiang, China (Mainland)
Model Number: SKPP402 Brand Name: NETTFIT Connection: fast connecting
Shape: Reducing Head Code: round Color: blue and black
Type: Tee Pressure:   PN16

Supply Ability

Supply Ability: 3000 Carton/Cartons per Week

Product Description

Reducing Tee

Specifications:  20mm--110mm

Pressure piping applications
Ease of installation
Water distribution,Irrigation

SKPP202 REDUCING TEE
spec   qty/ctn Package size g.w. n.w. PICTURE
pc m m m kgs kgs
25x20x25 60 0.5 0.3 0.265 9.76 9.06

32x20x32 40 0.5 0.3 0.24 9.74 9.04
32x25x32 40 0.5 0.3 0.24 9.74 9.04
40x25x40 20 0.5 0.3 0.265 8.98 8.28
40x32x40 20 0.5 0.3 0.265 8.98 8.28
50x25x50 12 0.5 0.31 0.24 8.92 8.22
50x32x50 12 0.5 0.3 0.28 9.06 8.36
50x40x50 12 0.5 0.3 0.28 9.83 9.13
63x40x63 7 0.5 0.3 0.28 9.11 8.41
63x50x63 7 0.5 0.3 0.28 9.11 8.41
75x50x75 6 0.58 0.3 0.34 10.50 9.80
75x63x75 6 0.45 0.3 0.38 10.77 10.07
 90x63x90 4 0.47 0.31 0.43 8.01 7.31
90x75x90 4 0.51 0.29 0.43 8.01 7.31
110x75x110 3 0.53 0.35 0.43 15.21 14.51
110x90x110 3 0.51 0.35 0.5 11.14 10.44

SEKO PP compression fittings allows the working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
