Product Name
|

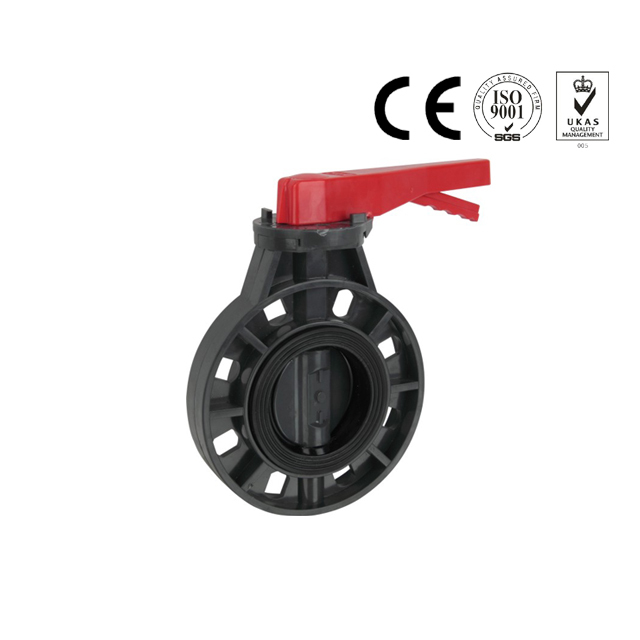

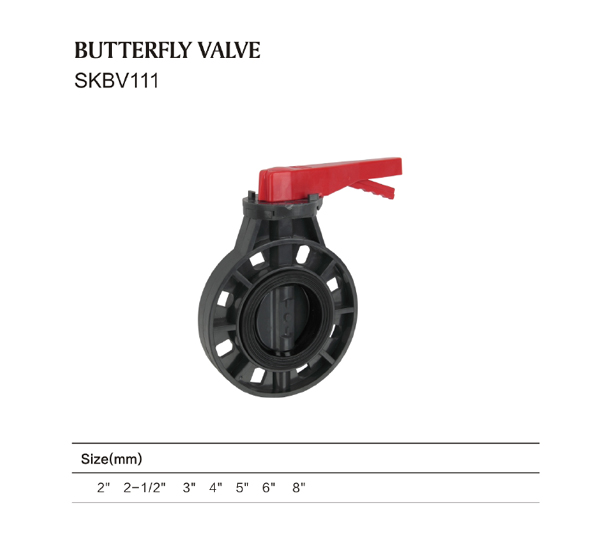

Butterfly valve
|
|
Brand
|
Seko
|
|
Type of Connecting
|
double flange lug wafer butterfly valve handle lever operated
|
|
Specifications
|
2" to 8"; DN50 to DN200; 63mm to 200mm
|
|
Materials of Body & Disc
|
UPVC/PVC
|
|
Handle Color
|
Red Yellow Orange Blue Green or Customized
|
|
Handle Material
|
ABS handle, Stainless steel 304 Spring
|
|
Body Color
|
gray body and disc and positioning plate
|
|
Nominal Pressure
|
PN10 150PSI 125Class
|
|
Working Temperature
|
below zero 10 to above freezing 60 degree.
|
|
Mounting Platform
|
ISO5211 F05/ F07 /F10
|
|
Driven by
|
bare shaft, available to install actuator, could be handle operated, gear operated , pneumatic and motor actuator
|
|
Disc type
|
reinforced keel disc, and stem with EPDM double o-ring sealing
|
|
Seat Material
|
NR (natural rubber for pure water system); EPDM( better for sea water); FPM ( Suitable for the chemical industry, acid and alkali resistant)
|
|
Shaft (Stem) Material
|
45# Carbon steel, SS304, SS316 as replacement.
|
|
Quality guarantee
|
18 months
|
|
Standard
|
DIN ANSI ASTM JIS BS CNS, whatever you choose, direct buy factory
|
|
Free sample & logo
|
get free sample; free logo. Laser marking machine can print any logo you want to.
|
|
Equipment
|
plastic injection machine; pressure testing machine, processing machine. Laser marking machine
|
|
Certificate
|
Certificate of Origin, like China-Pakistan FTA, China-Korea FTA, Asean-China Free Trade Area FORM E, China-Chile FTA FORM F
|
|
Application
|
• Water & Waste water Treatment Plant
• Chemical Processing
• Food & Beverage • Swimming Pools & Water Parks • Agriculture irrigation system • Aquarium & Zoo Service • Pharmaceutical • Pulp & Paper • Landfill Service • Marine & Corrosive Environmen |
