High quality PP CPVC compact ball valve con-shaped 20mm-63mm BS ANSI DIN JIS standard blue socket or threaded equal plastic valve.
Quick Details
| Material: | Plastic | Technics: | Forged | Type: | Union |
| Place of Origin: | Zhejiang, China (Mainland) | Model Number: | SKBV103 | Brand Name: | SEKO |
| Connection: | Socket | Shape: | Equal | Head Code: | roud |
| Pressure: | PN10 | Structure: | Ball | Standard or Nonsta: | Standard |
| Temperature of Me: | Normal | Port Size: | 20mm-63mm | Color: | Blue |
| Media: | Water |
Supply Ability
| Supply Ability: | 10000 Piece/Pieces per Day |
Product Description

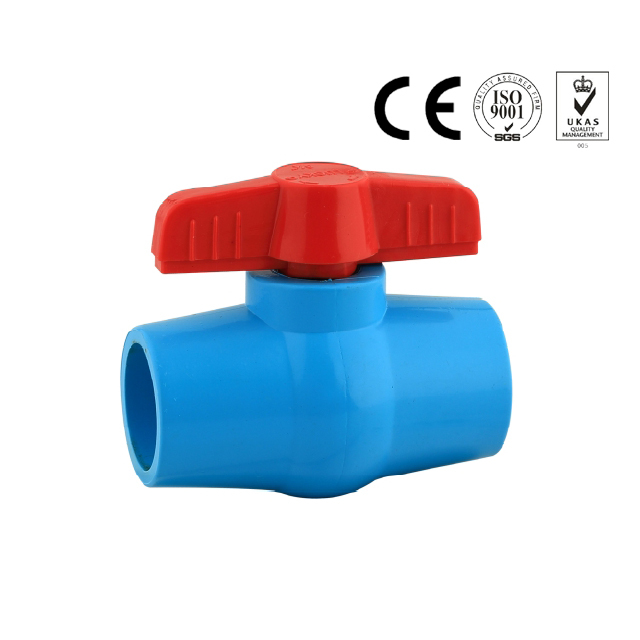

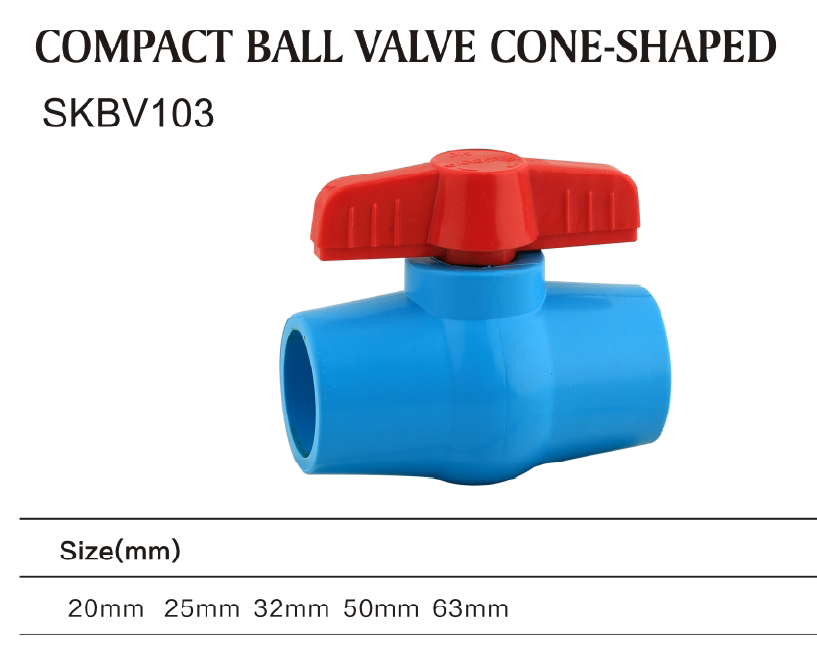

PVC Ball Valve
1.Full Size:20mm-63mm.
2. All Standard: BS,ANSI,DIN,JIS
3. Color: white, grey or any color customer likes
4.Socket and Threaded both are ok
4. Short leadtime(around 15days for a 20’container order)
Features:
1) Healthy and non-toxic, free of stain and scale.
2) High temperature resistance (water temperature is up to
90oC and high pressure resistance is over 5MPa).
3) Hot welding connection adopted, making pipes and fittings into whole, leakage
effectively prevented.
4) Low thermal conductivity and thermal insulation performance (only one
hundredth of that of metal pipes).
5) Light weight (approximately one eighth of that of metal pipes), easy to handle
and transport.
6) Smooth inner wall, reducing pressure loss and increasing flow speed.
7) Low noise, reduced by 40% compared to galvanized steel pipes.
8) Soft colors and design, suitable for installation either exposed or
hidden.
9) Wonderful ability in chemical corrosion resistance
10) Easy and fast installation, making cost minimized
11) Over 50 years of service life under normal condition
Showing:
Production Process:
Advantage
1.Soft colors & Compact design;
2.Leakproof operation;
3.Light and union ends make easy installation
4.Economic as cheaper transport charges & long working life
5.Well and high quality control ;
6.Environment friendly, non-toxic;
7.Weathering & Abrasion resistance & chemical resistance
8.Widely used in building,irrigation,industry and swimming pool;
9.Small order acceptable ;
10. Customer's design & logo are welcome
